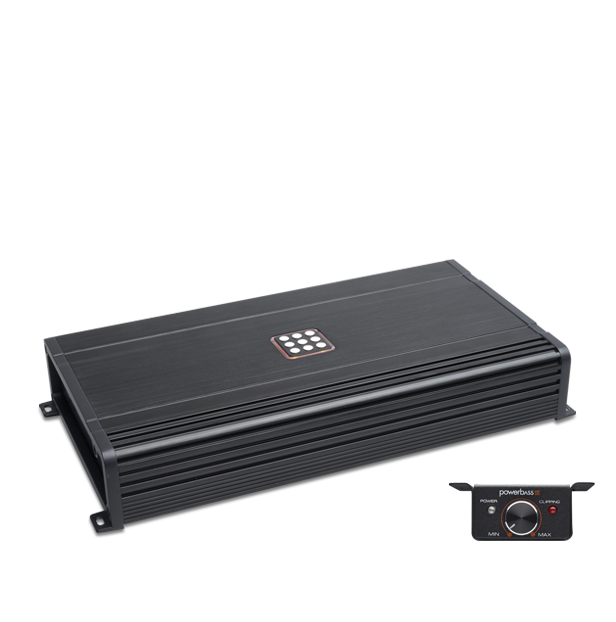

PBX-2000.1D Mono Block Compact Amplifier
- 2,000 Watt High Efficiency Class D Design
- Front Load Terminal Design
- 1-OHM Stable Mono Block Amplifier
- Ultra Low Current Draw
- Double Sided Copper Plated PCB
- PWM MOSFET Power Supply
- Digital Sound Optimization Circuitry
- High Damping Control Circuit
- Variable Subsonic Filter
- High Current Voltage Ripple Rejection Circuitry
- Balanced RCA Inputs
- Selectable Auto Turn On Circuit
- Remote Soft Delay Turn On/Off Circuit
- 40 Click Variable Low Pass Electronic Crossover
- 40 Click Variable Frequency/18dB Bass Boost EQ
- Variable Gain Control
- Calibrated Visual Clip Indicator
- Wired Secondary Remote Gain Control Included
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output
Home > Products > Amplifiers >
PBX-2000.1D Mono Block Compact Amplifier
Read more
PBX-2000.1D, 2,000W RMS @ 1Ω HIGH EFFICIENCY MONO BLOCK
MORE DETAILS COMING SOON
Specifications
- Subwoofer Frequency Range: 10 Hz - 250 Hz
- Power Supply: Unregulated PWM
- Channels (mono): 1
- 4-ohm Power: 700 watts x 1
- 4-ohm Mono Power: 700 watts x 1
- 2-ohm Power: 1400 watts x 1
- 1-ohm Mono Power: 2000 watts x 1
- Selectable Subwoofer EQ: 0 - 18 dB @ 40 Hz - 100 Hz
- Variable Subsonic Freq: 10 Hz - 50 Hz
- Equalization Boost/Cut: 0 - 18 dB
- Subwoofer EQ Frequency: 40 Hz- 100 Hz
- Variable Subwoofer EQ: 0 - 18 dB
- Low-Pass Crossover Freq: 20 Hz - 250 Hz
- High-Pass Crossover Freq: n/a
- Crossover Slope: 24 dB
- Input Sensitivity: 0.25 V - 10.0 V
- Output Power (14.4 V) @ 4 ohm: 700 watts x 1
- Output Power (14.4 V) @ 2 ohm: 1400 watts x 1
- Output Power (14.4 V) @ 1 ohm: 2000 watts x 1
- Frequency Response: 10 Hz - 300 Hz
