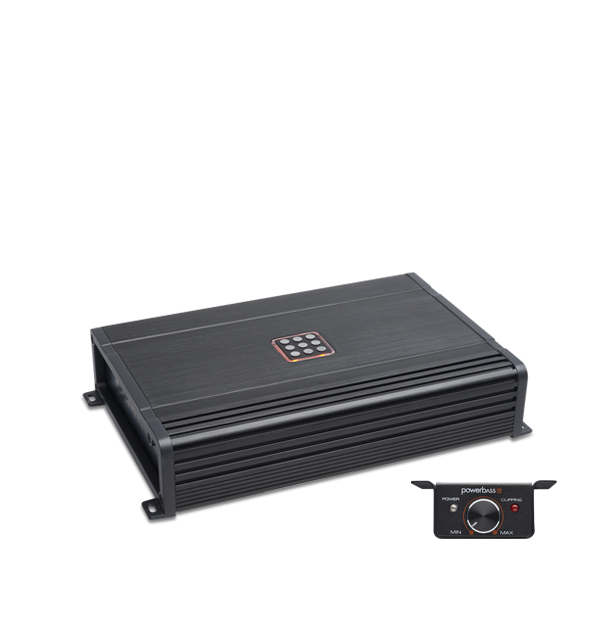

PBX-1200.1D Mono Block Compact Amplifier
- 1,200 Watt High Efficiency Class D Design
- Front Load Terminal Design
- 1-OHM Stable Mono Block Amplifier
- Ultra Low Current Draw
- Double Sided Copper Plated PCB
- PWM MOSFET Power Supply
- Digital Sound Optimization Circuitry
- High Damping Control Circuit
- Variable Subsonic Filter
- High Current Voltage Ripple Rejection Circuitry
- Balanced RCA Inputs
- Selectable Auto Turn On Circuit
- Remote Soft Delay Turn On/Off Circuit
- 40 Click Variable Low Pass Electronic Crossover
- Variable Gain Control
- Calibrated Visual Clip Indicator
- Wired Secondary Remote Gain Control Included
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output
Read more
PBX-1200.1D 1,2000 @ 1Ω HIGH EFFICIENCY MONO BLOCK
The PowerBass PBX Series Amplifiers are the cleanest most efficient amplifiers we have built to date, with attention to sonic accuracy, clarity and a bold use of efficient power this series is guaranteed to have you smiling with pure musical enjoyment.
PBX Ultra High Efficiency Amplifiers are the result of extensive engineering, and testing, to develop the best sounding and most efficient power delivery we have ever produced. with the success of our previous XMA Series our engineers went to work on the PBX Series with the goal of creating true works of art featuring high quality parts and an ultra efficient circuit design proving to be some of the best Class D amplifiers on the market today.
The PBX Series represents the very latest in Class D technology.uses IR® (International Recti-fier) platform. IR®, a leader in PWM circuit design, has worked in conjunction with PowerBass engineers to produce more stable power output, minimal RF interference and improved sound quality.
Available in Full-Range Digital 4CH, 6CH and 5CH models as well as D-Class Mono Blocks from 800W to an astounding 3000W RMS the PBX Series has the power and channel configurations to meet the demands of the most demanding setups.
Specifications
- Peak Power: 2400 watts
- Subwoofer Frequency Range: 10Hz - 300 Hz
- Inputs: RCA (speaker level compatible)
- Dimensions (in Inches): 11.25x7x2
- Depth: 11.25
- Channels (mono): 1
- 4-ohm Power: 500 watts x 1
- 4-ohm Mono Power: 500 watts x 1
- 2-ohm Power: 800 watts x 1
- 1-ohm Mono Power: 1200 watts x 1
- Variable Subsonic Freq: 10 Hz - 50 Hz
- Height: 2
- Width: 7
- Low-Pass Crossover Freq: 35Hz - 250 Hz
- High-Pass Crossover Freq: N/A
- Crossover Slope: 24 dB
- Input Sensitivity: 0.25 V - 7.0 V
- S/N Ratio: >93 dB
- Total Harmonic Distortion: 0.4% at Rated Power
- Strapped Output Power @ 2ohms: 2400 watts x 1
- Output Power (14.4 V) @ 4 ohm: 500 watts x 1
- Output Power (14.4 V) @ 2 ohm: 800 watts x 1
- Output Power (14.4 V) @ 1 ohm: 1200 watts x 1
- Frequency Response: 10 Hz - 300 Hz
