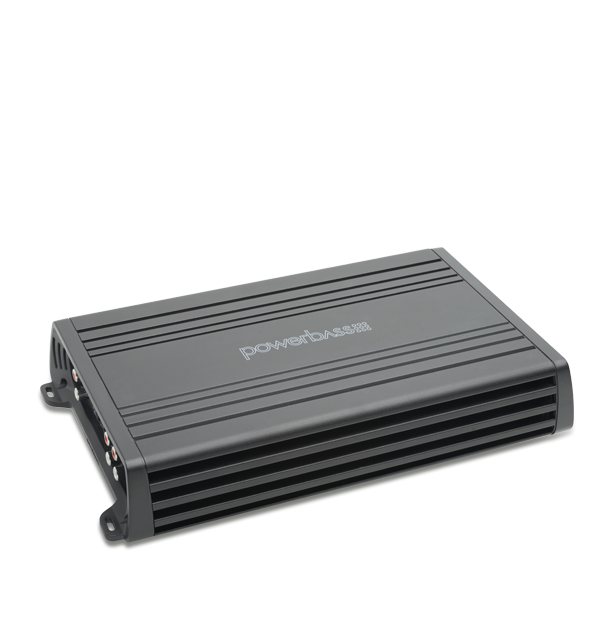

PB-850.5 5ch Compact Amplifier
- 5-Channel 1700 Watt High Efficiency Class D Design
- 2-ohm Stable (4-ohm in Bridged Mode) Channels 1-4
- 2-ohm Stable Subwoofer Channel 5
- PWM MOSFET Power Supply

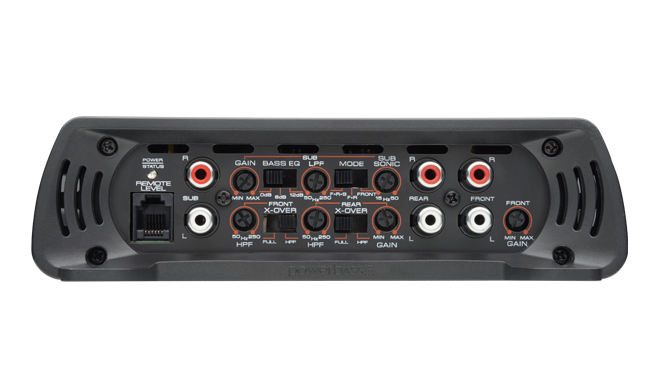

- Low Level (RCA) Input Front / Rear / Sub
- Remote Soft Delay Turn On/Off Circuit
- Variable High/Low Pass Electronic Crossover
- Selectable 12dB Bass Boost EQ
- Variable Subsonic Filter - Channel 5
- Variable Gain Control
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Home > Products > Amplifiers >
PB-850.5 5ch Compact Amplifier
Read more
PB-850.5 100W X 4 / 450W X 1 5CH CLASS D FULL RANGE COMPACT AMPLIFIER
PowerBass is pleased to introduce our newest series of amplifiers, the PB Series! The PB-850.5 is a 5CH CLASS D FULL RANGE Amplifier in the PB Series providing complete system configuration in one small package!
Borrowing from our former ACS series, these new amplifiers offer upgraded features, terminals and a dual layer PCB all packed in the most compact chassis allowable. To accomplish this we selected SMD parts and engineered a brand new high density heat sink engineered for maximum efficiency and cooling.
The result, an all new line-up of two, four, five and mono channel models that offer amazing performance and fantastic value. Ultra efficient, the PB Series amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. The PB Series Amplifiers provide the perfect mix of performance and style in a sleek new compact chassis.
Specifications
- Peak Power: 1700 watts
- Power Supply: Unregulated PWM
- Inputs: RCA, 3 Pairs Input
- Dimensions (in Inches): 12.8" x 7.1" x 2.0"
- Depth: 12.8"
- Channels (mono): 5
- 4-ohm Power: 65 watts x 4 / 300 watts x 1
- 4-ohm Mono Power: 200 watts x 2 / 300 watts x 1
- 2-ohm Power: 100 watts x 4 / 450 watts x 1
- 1-ohm Mono Power: N/A
- Selectable Subwoofer EQ: N/A
- Variable Subsonic Freq: N/A
- Equalization Boost/Cut: N/A
- Height: 2.0"
- Width: 7.1"
- Switchable Subwoofer EQ: N/A
- Subwoofer EQ Frequency: 45Hz
- Variable Subwoofer EQ: 0/6/12db Selectable
- Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz
- High-Pass Crossover Freq: Variable 50 Hz - 1 kHz
- Crossover Slope: 12 dB
- Input Sensitivity: 0.25 V - 6.0 V
- S/N Ratio: >100 dB
- Total Harmonic Distortion: 0.3% @ Rated Power
- Strapped Output Power @ 2ohms: N/A
- Output Power (14.4 V) @ 4 ohm: 65 watts x 4 / 300 watts x 1
- Output Power (14.4 V) @ 2 ohm: 100 watts x 4 / 450 watts x 1
- Output Power (14.4 V) @ 1 ohm: N/A
- Frequency Response: 10 Hz - 50 kHz
