PB-1000D 1ch Compact Amplifier
- 1,000 Watt High Efficiency Class D Design
- 1-OHM Stable Mono Block Amplifier
- MOSFET Power Supply
- High Level (Speaker)/Low Level (RCA) Input
- Remote Soft Delay Turn On/Off Circuit
- Variable Low Pass Electronic Crossover
- Selectable 12dB Bass Boost EQ
- Variable Gain Control
- Remote Level Control Port (for optional PB-GAIN1 controller)
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Home > Products > Amplifiers >

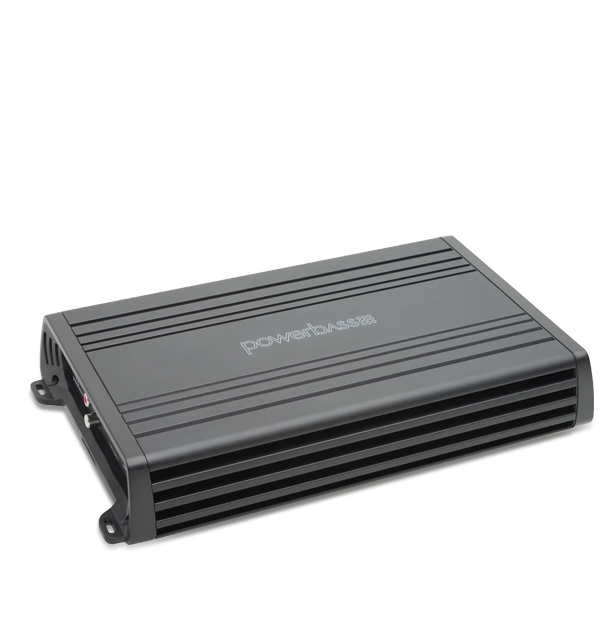

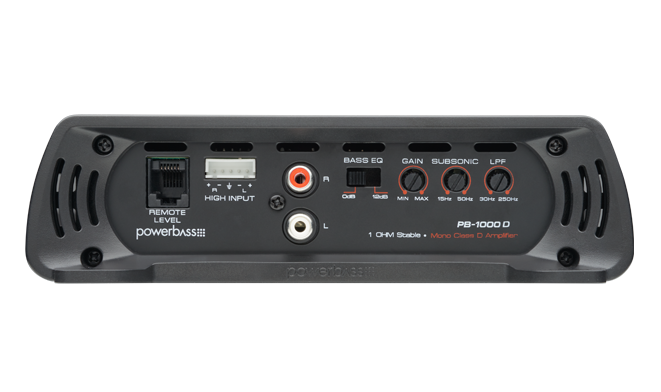

PB-1000D 1ch Compact Amplifier
Read more
PB-1000D 1,000W RMS @ 1Ω MONOBLOCK CLASS D COMPACT AMPLIFIER
PowerBass is pleased to introduce our newest series of amplifiers, the all new PB Series!
Borrowing from our former ACS series, these new amplifiers offer upgraded features, terminals and a dual layer PCB all packed in the most compact chassis allowable. To accomplish this we selected SMD parts and engineered a brand new high density heat sink engineered for maximum efficiency and cooling.
The result, an all new line-up of two, four, five and mono channel models that offer amazing performance and fantastic value. Ultra efficient, the PB Series amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. The PB Series Amplifiers provide the perfect mix of performance and style in a sleek new compact chassis.
Specifications
- Peak Power: 2000 watts
- Power Supply: Unregulated PWM
- Inputs: RCA, 1 Pair Input, 1 Pair Speaker Level Input
- Dimensions (in Inches): 12.0" x 7.1" x 2.0"
- Depth: 12.0"
- Channels (mono): 1
- Variable Subsonic Freq: Variable 15 Hz - 50 Hz
- Equalization Boost/Cut: Switchable 0/12 dB @ 45Hz
- Height: 2.0"
- Width: 7.1"
- Switchable Subwoofer EQ: 0 / +12 dB @ 45 Hz
- Subwoofer EQ Frequency: 45 Hz
- Variable Subwoofer EQ: Switchable 0/+12 dB
- Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz
- High-Pass Crossover Freq: N/A
- Crossover Slope: 12 dB
- Input Sensitivity: 0.25 V - 6.0 V
- S/N Ratio: >90 dB
- Total Harmonic Distortion: 0.5% @ 1,000 watts
- Strapped Output Power @ 2ohms: N/A
- Output Power (14.4 V) @ 4 ohm: 400 watts x 1
- Output Power (14.4 V) @ 2 ohm: 600 watts x 1
- Output Power (14.4 V) @ 1 ohm: 1000 watts x 1
- Frequency Response: 10 Hz - 250 Hz
Downloads
PB-1000D 1ch Compact Amplifier
