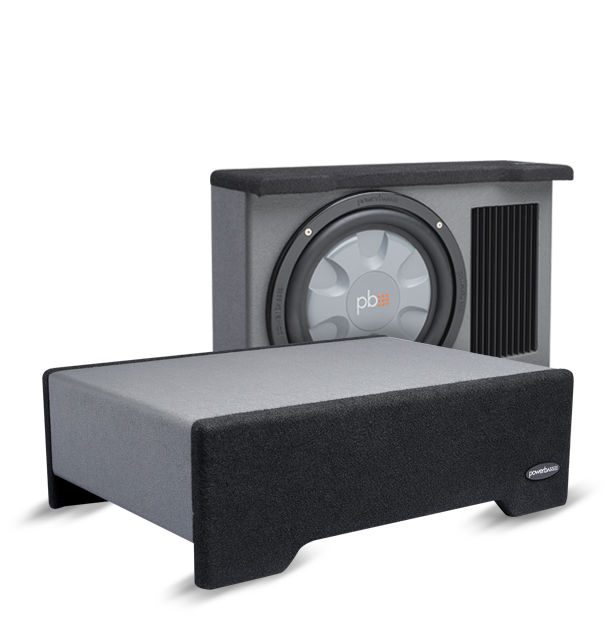

PS-ADF110T 10" Amplified Downfiring Enclosure
- Single 10" 175 Watt RMS Amplified Downfiring Enclosure
- Computer Optimized 10" Thin Subwoofer Enclosure
- Custom Injected Molded Cone
- Large Roll Rubber Surround
- 2" Vented KSV Voice Coil Former
- Perimeter Aero Voice Coil Venting
- Poly-carbonate/Glass Fiber Composite Turbine Basket
- Chrome Push Terminals
- 2-Tone Vinyl/Carpet Finish
- 1-Channel 275 Watt High Efficiency Class A/B Design
- High Level (Speaker)/Low Level RCA input
- Soft Delay Turn On/Off Circuit
- Auto Turn-on (high level input only)
- Variable Low Pass Electronic Crossover 50Hz - 200Hz
- Variable 12db Bass Boost EQ @ 45Hz
- Variable Gain Control
- Protection Circuit: Impedance Over-load, Speaker Short Circuit, Thermal Overheating, and DC Output
- Wired Remote Gain Control Included
- Down Firing Air Suspension Enclosure
- Heavy-Duty Reinforced Box Design
- Mounting Hardware Included
Home > Products > Loaded enclosures >
PS-ADF110T 10" Amplified Downfiring Enclosure
Read more
PS-ADF110T 10" AMPLIFIED DOWNFIRING ENCLOSURE
Our latest release is an Amplified down firing single 10-inch woofer enclosure designed for pick-ups, crew cabs and king cabs. The PS-ADF110T uses an "S" thin woofer and is finished in a mix of grey vinyl and black carpet and comes with a built in 175W RMS amplifier.
By having the woofer point downward helps load the front of the woofer for more bass output than a standard front firing enclosure. It's small size makes it an instant winner for producing the bass that is missing in your system without taking up a lot of room or breaking the bank.
Specifications
- Peak Power: 500W
- Dimensions (in Inches): 5.6" x 12.4" x 17.8"
- Depth: 17.8"
- 4-ohm Power: 275W
- 4-ohm Mono Power: 275W
- Selectable Subwoofer EQ: 45Hz
- Nominal Impedance: 4-ohm
- Height: 5.6"
- Width: 12.4"
- Voice Coil Size: 2 in
- Material: pp cone
- Magnet Size: 116 oz
- Sensitivity (1W / 1M): 91 db
- Low-Pass Crossover Freq: 50Hz-200Hz
- Output Power (14.4 V) @ 4 ohm: 275W
- Size: 10 in shallow
- Frequency Response: 38Hz - 280Hz
- Voice Coil Size: 2"
- Power Handling (RMS/Peak): 275 / 500 watts
