PBM-500.1 PBM Series Monoblock Class D Mini Amplifier

  • 500 Watt High Efficiency Class D Design
  • 2-OHM Stable Mono Block Amplifier
  • Ultra Low Current Draw
  • Conformal Coated PC Board
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • Variable Low Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
PBM-500.1 PBM Series Monoblock Class D Mini Amplifier
Home > Products > Amplifiers > PBM-500.1 PBM Series Monoblock Class D Mini Amplifier
Read more

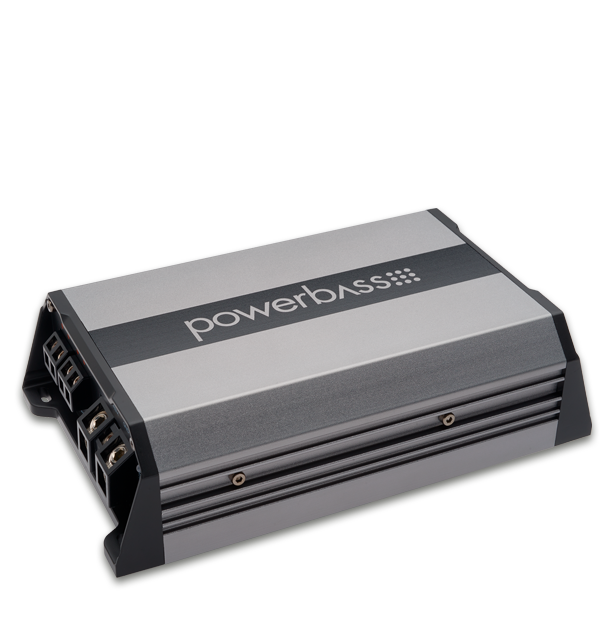

PBM-500.1 500W RMS @ 2Ω PBM SERIES MONOBLOCK CLASS D MINI AMPLIFIER

The new PBM Series Mini Amplifiers are the latest development from the engineering department here at PowerBass.  We set out to make the world of "mini" amps better providing more power in less space but also providing clean output signal while keeping the current demand low and the power output high!   The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and extreme temperatures making the PBM series great for motorcycles and any install that might see dust and moisture in the installation area when space is limited but extreme power is needed.

These ultra small weather resistant amplifiers are ideal for all types of audio applications such as motorcycles, golf carts and off road vehicles. But the small size also makes these amps a great choice anywhere space is a premium. Tucking these away makes any install clean and compact for a great stealth install that packs a punch.

Utilizing the latest Class D circuit design these amplifiers may be small on size but they are big on power and have a much lower current draw and cleaner output signal compared to other amplifiers in their category.  Available in 4-Channel, 2-Channel, and Mono Block Models with more models coming soon!

Specifications

  • Peak Power: 600 watts x 1
  • Subwoofer Frequency Range: 10 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA
  • Dimensions (in Inches): 7.3"x4.43"x2"
  • Channels (mono): 1
  • 4-ohm Power: 250 watts x 1
  • 4-ohm Mono Power: 250 watts x 1
  • 2-ohm Power: 500 watts x 1
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Variable Subsonic Freq: 10 Hz - 50 Hz
  • Equalization Boost/Cut: 0 - 18 dB
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 50 Hz - 250 Hz
  • High-Pass Crossover Freq: N/A
  • Crossover Slope: 24 dB
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >85 dB
  • Total Harmonic Distortion: 0.4% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 250 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 500 watts x 1
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 10 Hz - 300 Hz
