PB-275 2.75" Full-Range Coaxial
- 2.75" Full Range Coaxial Speaker
- Sold In Pairs
- Drop in Replacement Design
- 16mm Mylar Dome Tweeter
- Poly Mica Woofer Cone
- Butyl Rubber Surround
- EFF Motor Structures (Efficient Flux Field)
- In-Line Cross Over Network Included x2
- 4-ohm System Impedance
Read more

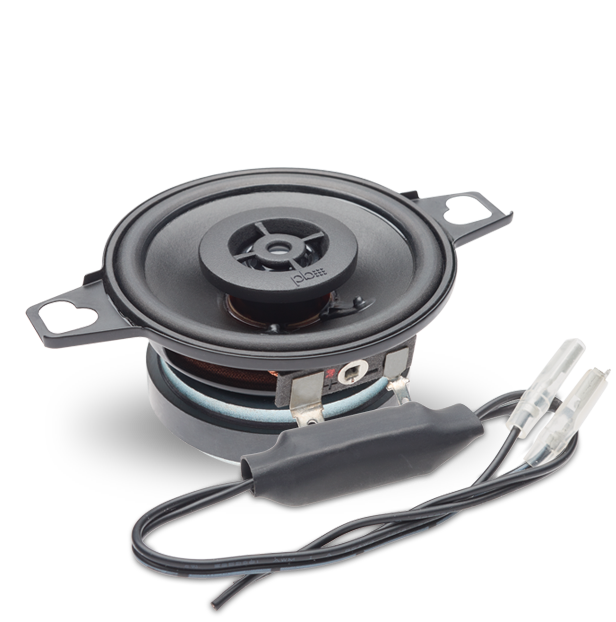

PB-275 2.75" FULL RANGE COAXIAL
Since their introduction nearly 10 years ago, our S-Series coaxial have made a name for themselves with avid music fans the world over. Taking cues from the staple S Series the new PB Series comes into the PowerBass line up with added sizes and new materials providing a new refined sound experience and the same unparalleled quality you have come to expect from PowerBass.
The PB-275 features a Poly Mica Woofer Cone and Butyl Rubber surround for added protection from sunlight as the traditional mounting location is found usually in the dash of most vehicles, but also providing a more defined lower frequency response.
We didn't stop there as we wanted to ensure the upper end was also dialed into perfection with the 16mm Mylar dome tweeter providing a bit brighter response than our usual Silk dome approach helping to raise the sound stage a bit and expand the listening area over all. We also included in-line cross over networks so you do not have to worry about unwanted signal being passed through simply attach these in-line and the frequency response is now set to an adjusted range of 850Hz-20kHz providing a more refined output for your PB-275 Coaxials.
Stay tuned for more great additions to the new PB Series Full Range Line from PowerBass!
Specifications
- Nominal Impedance: 4-ohm
- Material: Poly / Mylar
- Magnet Size: 3 oz
- Sensitivity (1W / 1M): 83 dB
- High-Pass Crossover Freq: 850Hz - 20kHz
- Mounting Depth: 1.3 in
- Size: 2.75 in
- Sensitivity: 83 dB
- Frequency Response: 230Hz - 20kHz
- Power Handling (RMS/Peak): 30 / 90 watts
Downloads
PB-275 2.75" Full-Range
